2018 series talk

Tagged:

Viewing 54 reply threads
  • Author
    Posts
    • #10132
      Avatar photoMitleid
      Keymaster

      I know this is early but I want to start talking about potential race series for next year to get ahead of the ball.  I wanted to start this because I have a fairly complicated series I would like run

    • #10142
      Avatar phototurboman93
      Participant

      Soooo….. are you going to keep us in suspense or let us in on the idea?

    • #10143
      Avatar photoBarkingSpyder
      Participant

      tractor pull on a straight of the rally track …

    • #10565
      Avatar photoMitleid
      Keymaster

      OK so what I propose is a modern le mans style race.  The way I envisioned it was it being both the 3rd and 4th quarter.  Race 1 would be group A runs prototypes and group B runs GT cars then the second race is the opposite and we go back and forth for a total of 12 races 6 in each category.  I would love to see some limit on the GT cars in hopes of actually making them a little slower then the proto-types.  So maybe GT limit to 20k motor and le mans is open (.?) Idk let me know what you all think

      • #10604
        Avatar photoRadial TA
        Participant

        My favorite 1:1 sports car races were the Trans Am races with the pony cars in over two liter and under two liter european/japanese sports sedans ( later under 2.5 l).  We could easily do that type of race with the differentiation of the max motor sizes.  Many of you have the pony car already.  I don’t remember seeing any of the smaller sports cars running as slot cars during Thursday evenings.

      • #11156
        Avatar photoRadial TA
        Participant

        Never mind about the TransAm suggestion earlier this year.

    • #10567
      Avatar photoRadial TA
      Participant

      I like the proposed motor differentiation to make GT and Prototype run different lap times.  Would some heats mix the GT and Prototypes, or would the A and B grouping keep the heats “pure” each race?

    • #10582
      Avatar photoBarkingSpyder
      Participant

      Sounds interesting Stevo. What about actually spec’ing the LMP motors to be in a certain range, say 22k min – 25k max, and perhaps models like Flat-6-RS and Boxer-2?  Any ideas on spec’ing a particular motor pod orientation, say something challenging like anglewinder?

    • #10704
      Avatar photoMitleid
      Keymaster

      the issue I have with limiting it to motors is that we had an slotit orange endbell holding the record of fastest lap with a 3.712 for quite some time.  I am now thinking the GT car could be limited to 4 second lap time minimum anything below it does not count it could be an interesting challenge.

    • #10925
      Avatar photoRadial TA
      Participant

      An article of the online magazine Sports Car Digest has details of an interesting catch all class we might consider for slot cars next year. I think it is group F with a wide range of cars from the Can-Am through Daytona Prototypes. I don’t want to clog the club site with this. How are we going to submit pre-meeting suggestions for next year like the 2 class proposal from Steve?

      Randy,

      Here is the paragraph describing Group F.

      One of the more intriguing run groups was Group F, which combined 1983-2007 World SportsCar Championship and Le Mans Prototype entries along with 1966-72 Can-Am. It is rare to see a 2006 Riley Scott being pursued by a 1970 McLaren and a 2005 Audi R8 Le Mans Prototype, but it happened at the 2017 Spring Classic Laguna Seca. The 2005 Audi R8 LMP driven by Travis Engen won every time he started on the grid, scoring Group F victories on Saturday and twice on Sunday and winning Saturday’s one-hour vintage enduro that was open to all close-wheeled race cars.

      I believe these cars were grouped together because they didn’t have enough entries to make a WSC group or a CanAm group. They really do not belong together in a vintage race.

      I would be for:

      1. A Slot.it or similar Can Am class i.e. McLaren M8 D etc.

      2. Modern WEC or Imsa Prototypes.

      3. Slot.it Ford GT 40s Mk 1 & Mk II.

      John B

      • #10951
        Avatar photoBellator
        Guest

        Hi John,

        You aren’t “clogging up the site” with posts like this.  In fact, this type of discussion is the purpose for which these forums are intended.  Using the forums instead of email keeps all of the suggestions and feedback in one place, easily accessible by all members. It also gives non members, who may be interested in participating, insight into how the club operates, answering a lot of cultural and procedural questions by example.

        So… post on!  🙂

        Brian

    • #10947
      Avatar photoBarkingSpyder
      Participant

      /posted by Mark for Randy and John.
      1. Group-F type series (like 2017 Spring Classic Laguna Seca): Combined running of 1983-2007 World SportsCar Championship, LMPs, and 1966-72 Can-Am cars.
      2. CanAm (its been three years-2014 since our last)
      3. Modern WEC and IMSA Prototypes (like the WeatherTech Series)
      4. Slot.It Ford GT-40 Mk-1 & Mk-II

    • #11086
      Avatar phototurboman93
      Participant

      Let’s get the discussion on series for next year.  As stated in the meeting, put your suggestions here and I’ll put a survey together mid-September for everyone to vote on the ones they want.

    • #11108
      Avatar photoporsche917
      Moderator

      I would suggest the following two series for 2018

      1. NSR Porsche GT3 series.  Spec-ish series with everyone running a NSR Porsche GT3 car, sidewinder only and any NSR parts

      2, FIA GT race for 1996 series.  Open.  Tons of cars to run from various manufactures as well as running any of the numerous Fly cars that now have a 3D chassis available for them.  Here is a simple list of cars:

      McLaren F1 GTR short tail, Porsche GT1, Marcos, Venturi, Dodge Viper, Ferrari F40’s, Porsche GT2

      Lots of options from Fly that can be purchased on eBay for very little money then built with a 3D chassis and some Slot It/NSR parts to make a fun series.  The question is whether or not we would not allow the Mr. Slot Car McLaren F1 GTR as it might be too quick.  Having never run one I just don’t know.  The Policar Ferrari F40 and the older Slot It F40’s could be too fast as well.  I just don’t want it to be a two make series – McLaren F1 GTR and Ferrari F40.

    • #11114
      Avatar photoBarkingSpyder
      Participant

      A serious suggestion this time … covers common issues such as limiting cost, confusing rules, emphasis on driver skill over endless investment and equipment tuning. Normal and reasonable tuning allowed vs overly restrictive mods on spec cars.

      1.ECONO SUPER-CARS
      Scalextric Highly-resistant Audi-R8 and Bugati Veyron; both appx $40
      Both have similar dimensions; both have the typical sidewinder 18.5k rpm motor.
      R8: 86gm, w/b 83mm, len 142mm, wdth 62.5mm
      Veyron: 88gm, w/b 85.5mm, len 140mm, wdth 63mm

      EQUIPMENT MODS: Fr tires: ZeroGrip 19×10; Rr tires: F30, P6; B-Nova guide adapter, Slot.It DeepWood Guide; Slot.It smooth-shank body screws; Fantasy paint or decals encouraged; race number on side windows and upper left windsheild (GT style) required

      TUNING ALLOWED: Motor break-in; front tire height adjusted with guide spacers; bushings and motor may be glued; bare minimum chassis trimming for float; post-cups can be flattened (for float) but cannot be shortened; rear OEM wheels can be trued; rear tires can be glued and trued (on TireRazor); Ballast allowed but max weight less than 92gm
      PROHIBITED: Magnet, alloy wheels, non-OEM gears and axles, body lightening, non-OEM motor/guide wires, non-OEM glass
      VOLTAGE: 12 or 13v – to be determined after some experimentation.

      BENEFITS: Low-cost; single brand; controlled-specs but typical tuning allowed. Emphasis on FUN and DRIVING skill, -vs- ‘no expenses spared’ to turn 3.6s These cars are great looking and handle decent out of the box.

      2.ECONO FORMULA
      Scalextric High-impact F1s
      Specs and rules similar to the ECONO SUPER-CAR
      VARIATIONS: Rear tires Slot.It F22s (shore 22s for F1 wheels), or PaulGage Eurethanes if the F22s won’t fit. Max weight 6gm over factory spec.

    • #11117
      Avatar photoporsche917
      Moderator

      I like the idea of a low cost single brand controlled spec series but the big issue here is the variance with the motors.  That is why there were issues with the last impact resistant race – the GT Lightning series.  The ability to adjust your gearing to suit the power and RPM of the motor is key to keeping everyone competitive.  Without that its the luck of the draw of who got the better-faster motor.



    • #11129
      Avatar photoRadial TA
      Participant

      CAN AM!  I’m working on updating the 2014 series list of real cars from 1966-1973 and slot cars manufactured for this series.  There are numerous new manufactures, cars and 3D chassis that could expand the stable of competitive cars.  I’ll annotate the car chart to show which cars have Olifer, etc. available.  I am going to recommend that Racer Silverline (1/30) and Vanquish (1/28) not be allowed because they are too large.  If someone has a car from those companies that is measurably 1/32 that we can confirm we can add it.

      I’ll draft series rules.  We should also specify some chassis and wheel rules based on Russell’s wild highly modified Porsche 917/30.  Resin bodies were allowed in 2014 so I propose we still allow them.

      Since I expect to keep working on Saturdays at the golf course, I could only share Series Manager duties during non-daylight savings dates when I get off work at noon instead of 1:00 like now.  So consider being a Manager or co-manager.

      • #11135
        Avatar photoBarkingSpyder
        Participant

        CAN AM – Randy I will be glad to be your Assistant Manager. I will setup the track, prep for and execute Scrutineering if you are late, and help you with your first stories.
        —–
        RULES – IMHO, Russ’ custom wheels were legal and appropriate b/c the Donahue 1×1 917-30 had huge wheels/tires. Yes it dominated and so did Russell, but I doubt it was due to unfair advantage strictly from the tires/wheels. He put alot of work into the car and it could have easily failed – it was a fairly realistic process similar to what they did to the real 917-30 to make it win. His car was fat and heavy and easily could have been disadvantaged in the process.

        So – for 2018, we could create a rule that for cars like the 917-30, F1 wheels would be spec’ed, therefore Not requiring (or allowing) someone to go through the custom wheel process that Russ did. Basically, for certain models we could allow the F1 wheels, but retain our standard spec that the tires have to be completely within the wheel-well/fenders. Realistically, if we have another CAN AM there is nothing wrong with keeping the spirit of the original 1×1 race and allowing the openness that made it the fast and exciting 1×1 series it was.

      • #11154
        Avatar photoRadial TA
        Participant

        Attached is a sheet of info for a CanAm series derived from the 2014 specs with updated eligible car info about almost ready to run like Slot.it, others with 3D chassis, and last the ones that have a body but the running gear is not up to par for our racing.

    • #11130
      Avatar photoBarkingSpyder
      Participant

      ECONO Super-Cars Update
      — Open gearing being considered; per Marty’s comments

      PROPOSAL TEMPLATE
      Attached is a Word doc you can download and/or print to document details on the series you want to propose. Yes, of course you can edit the document as you need for your series. PLEASE DELETE anything from the template that is NOT directly related to your series. You can also simply PRINT this out and manually pen in your specs and bring copies to the Oct meeting (strike out anything not related to your series).
      Please do NOT copy in the existing rules about magnets, silicone, oil-soaking, wings, ballast, screws …. especially if they are not typically encountered in our races or rarely enforced. We got it – there are standard things we don’t allow. Only discuss a variation, allowance or new restriction.
      Please be very simple and direct to the point.

    • #11145
      Avatar photoBarkingSpyder
      Participant

      Attached is my proposal for an “Econo Super Car” series of Scaley High-Impact/Resistant:
      — Audi R18, Bugata Veryon, McLaren, Ferrari coupes
      — Motors must be the stock spec, but can be broke in and you pick from the best-of-the-litter. Perhaps all of us could break in our spare Scaley motors and bring them in to sell/trade?
      — The spur gear will be open, as per Marty’s concern to be able to tune the car to accomodate the inconsistent RPMs of the motors.

    • #11175
      Avatar photoporsche917
      Moderator

      Russell brought up the idea of running the new Revo Slot cars as a spec series.  They are a BRM metal chassis with a Proslot Porsche GT2 body.  There are currently only six liveries but they do make a white kit.  I believe this would be a fun series to run as the cars weigh much more and are typically more stable.  I have one on the way for the club to check out.  We could run this series similar to a Scaleauto or BRM series – one with limited modifications.  You would be allowed to change the gearing and tire durometer.  The kit even comes with a wood guide we could spec.

    • #11178
      Avatar photoBarkingSpyder
      Participant

      Looks super cool! Obviously availability will be a factor to consider when to run this series (4Q?) and we eventually need to locate the price.   $90?  $120?

    • #11180
      Avatar photoporsche917
      Moderator

      The Revo Slot cars sell for $79.50.  All six liveries are available.  I have purchased one for the club to check out at the meeting.  To be honest, $79.50 is inexpensive considering it has a metal chassis and ball bearings.  The Thunderslot cars are $110 for plastic chassis.

      Marty

      • #11185
        Avatar photoRadial TA
        Participant

        The NSR GT3 997 Porsches are also all more expensive.  Can the club tolerate running the Anglewinder setup for NSR or Revo Slot to keep the cost down?  I can run anglewinder.

      • #11192
        Avatar photoMitleid
        Keymaster

        Also from what I can tell the Revo-slot car looks RTRace 4 metal wheels and all.  We can just say box stock plus tires it looks pretty cheap.  I like the chassis it looks interesting!!

    • #11183
      Avatar photoAutorama
      Keymaster

      — “Factory stock” Carrera GT Class: WEC /IMSA – year range TBD but definitely no cars prior to 2013.

      I will be sharing more details during the club meeting.

    • #11186
      Avatar photoporsche917
      Moderator
      2018 Series Suggestions:

      -Group C

      -AllSlot Formula GP
      -Can Am 1966-1973: Slot.it , Thunder Slot etc.
      -Ford GT: a Slot.it spec series ala Group C.  Mk1 and MkII.)
      -Trans AM: Scalextric, Carrera etc. with Shapeways chassis. Open specs.
      -Vintage Rally: Year range, Open mfg., no drop arms.
      Thanks,
      John Breidenbach
    • #11195
      Avatar photochapracer65
      Participant

      I like the idea of the Revo-Slot spec series.  After the Goodwood series, which I really enjoyed, already having all the cars I built out for it, I have not had time to assemble and test unfamiliar cars for other series.  As has been said, maybe only tires and gears to change.  Everyone should be on equal footing.
      For other series, I like Can Am, a spec Ford GT Slot.it series, and Trans AM.

    • #11197
      Avatar photoAutorama
      Keymaster

      [quote=11183]— “Factory stock” Carrera GT Class: WEC /IMSA – year range TBD but definitely no cars prior to 2013. I will be sharing more details during the club meeting. [/quote]

      I’m ready to share the details:

      “Factory Stock” Carrera GT Class (2015 to 2017):

      –  Analog models without magnet + stock everything (wheels, motor, gears, etc).
      – CG Slotcars Carrera guide adapter + Slot.it wood guide.
      – NSR 5230 Supergrip (20.5 x11) rear tires + Stock front tires.
      – Polarity switch can be removed and wiring replaced.
      – Chassis sanding is allowed for float but gap should not be larger than the thickness of a credit card.

      Models:

      — Aston Martin Vantage V12

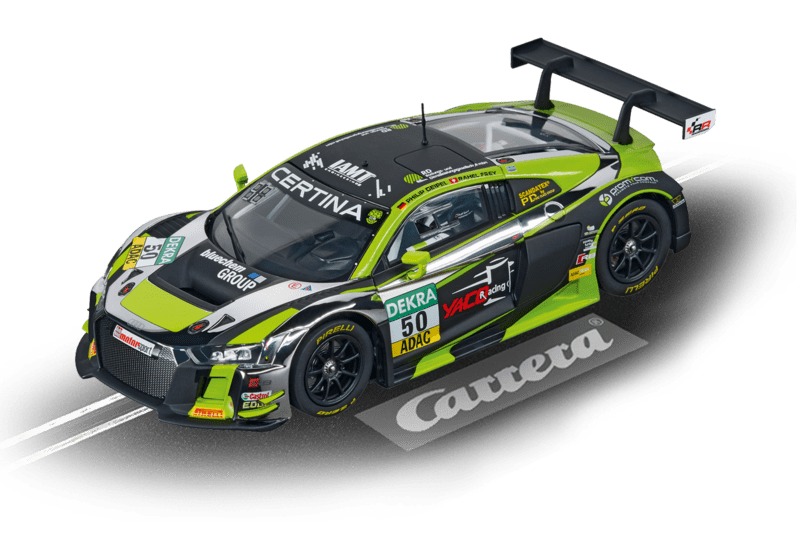

      — Audi R8 LMS

      — BMW M6 GTLM

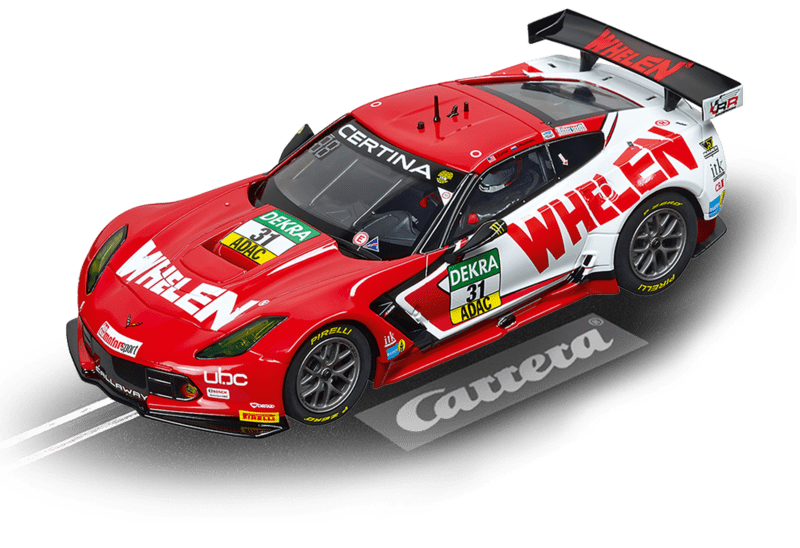

      — Chevrolet Corvette CR7

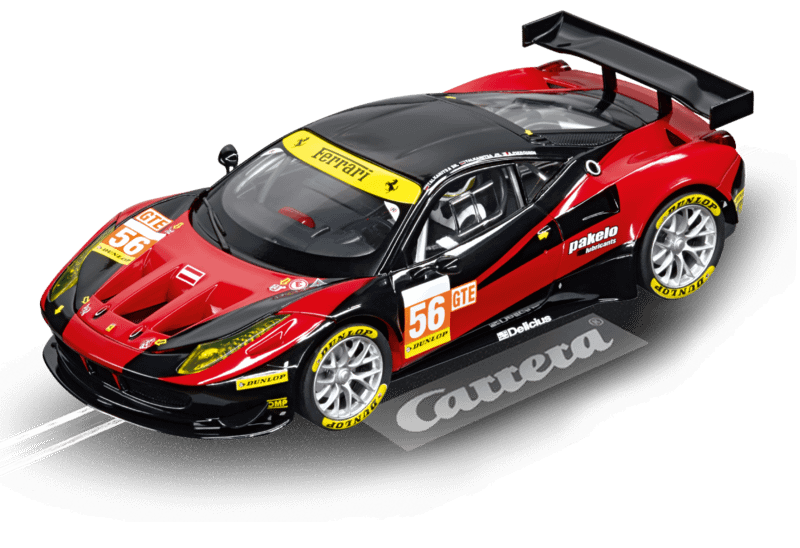

      — Ferrari 458

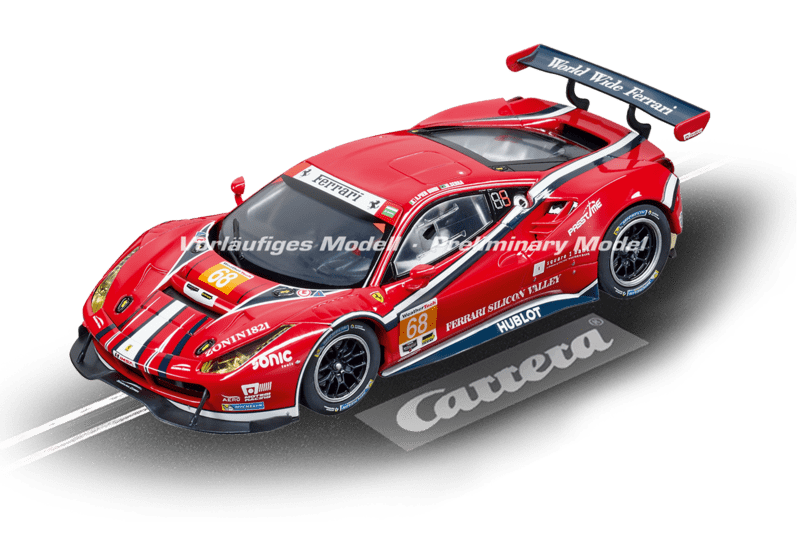

      — Ferrari 488

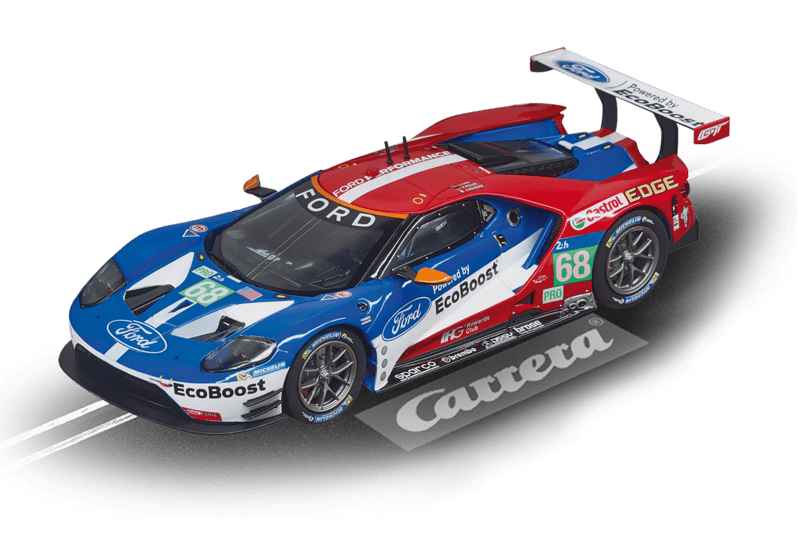

      — Ford GT RC

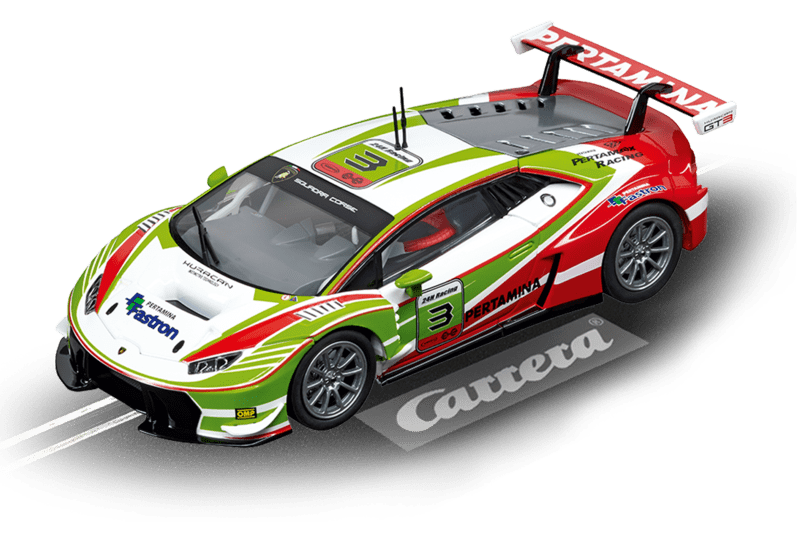

      — Lamborguini Huracan

      Additional details:

      Are you crazy? Stock gearing, plastic wheels??

      Ok, as far as the plastic wheels go — yeah, we need to give it a try. I have checked the wheels of 10 or so Carrera cars I have purchased in the past 4 to 5 years and found all to be round and centered.

      Now, instead of changing the car gearing, each racer will be able to change the voltage of their lanes. We would still be limited to the power supply range (6 to 16 volts) but that is plenty to allow all cars, regardless of weight, to reach their maximum potential.

      _____________

      Car list may be changed.

      More details on the attached spreadsheet.

    • #11214
      Avatar phototurboman93
      Participant

      OK everyone.  Please go to this link to vote on your Top 4 series for 2018.  We’re already going to run Group C and a rally event, so we only need an additional 4 series to round out the year.



      https://www.surveymonkey.com/r/YT99GG6



      If you have any issues, contact me directly to work on a fix.

    • #11217
      Avatar photoporsche917
      Moderator

      Ary,

      Have you set up a Carrera car like what you are talking about in your 2018 series idea?  I am wondering how well the car worked with that set up?  Did the tires mount to the rims OK?  Are the wheels really all that round and true?

      Marty

    • #11223
      Avatar photoAutorama
      Keymaster

      Marty,

      Wheels are round and the rear tires suggested fit nicely — fit better than the original front tires, but we can change that in the future.

      I’m still working in the car but should have it ready by Saturday.

    • #11224
      Avatar photoAutorama
      Keymaster

      Ok,

      Using the plastic wheels is out of the question. Not because the wheels are not round or because the tires do not fit well; the issue is simply that I cannot figure out a way to true tires on plastic wheels.

      Taking the wheels out is a bad idea as it may enlarge the axle hole. Leaving them on, and trying to true using the Tire Razor truer is possibly just as bad – that truer is wrong in so many ways, I will save the “review” for later.

      Anyhow, we can still race a Carrera based GT series but we would have to change the wheels; not what I had in mind.





    • #11225
      Avatar photoporsche917
      Moderator

      Ary – Don’t we have an Area 3 or Tire Razor truer that will allow us to true tires with axles that have pressed on wheels?  If not, we could use the old block of sandpaper and lowering the car on top of the paper with the motor running and true the wheels that way.  It worked for me when first starting off in slot cars.  It’s not as good as a real truer but its better than nothing.  The club could invest in a truer that could do this type of work.  Slot Car Corner has the Tire Razor in stock for $159.

      I like the series idea and would not want the tire truer to be the reason we decide not to hold the series.



    • #11242
      Avatar photoBarkingSpyder
      Participant

      Regarding a sandpaper truer, above the power supplies is a simple “tire cleaner” – a piece of carerra track with #300? sandpaper on it.  We use if for minor clean-up truing between races, and for HO cars.  I made it back in May when Bobby was taping paper onto the bench and truing his tires that way.

      Regarding the Razor, I bought Dave’s and adjusted it to make it actually level (it was not truing each side equally).  Mine works Ok – yes Ary it’s not a precision tool but for carreras it would be ok.

      ALSO – why dont we just allow Slot.It axles, wheels and 12mm tires?  I converted my Carerra 2016 GT40.  It is still Heavy and we should consider a Slot.It Orange endbell motor.  Everyone has spares and those that dont can buy parts from another member.

    • #11245
      Avatar photoporsche917
      Moderator

      POSTED FOR RUSSELL

      Some comments:

      I like Ary’s idea of individual voltage controllers. This would be especially good for series with a spec motor. The master voltage could be set to 11.5V or 12V to allow just a little variation for voltage, up to 15V for quite a lot. For Steve’s Prototype/GT series, the GT cars could be set to a fixed, lower voltage.

      I am opposed to any series requiring stock plastic wheels. A spec wheel could be required, if necessary.

      I realize that the goal for series discussion and preliminary voting was to weed out less popular options to make the often long-winded discussion at the annual meeting more manageable, but I would hesitate to say that only the top six would be considered. There are too many variables on rules that would make some series more or less popular. Cases could be made at the meeting for particular rules that would make a low-ranking series much more palatable. We could probably eliminate those that are at the bottom of the preliminary voting.

      If the Can Am series is voted in, I would like to see an open format. Simply requiring a maximum wheel width of 12mm would eliminate any, ahem….., creative wheel construction. I don’t think it would be necessary to require F1 wheels, as they would be hard to find inserts for. Wheel diameter would be open as a wide variety of wheels were used. The F1 20 X 12 F22 Raptor tires will fit a standard wheel. I think the only other rule requirement would be to disallow any 1:30 or larger cars. Tires and wheels must fit within the body width.

      IMHO
      Russell

    • #11253
      Avatar photoBarkingSpyder
      Participant

      REVO SLOT PARTS
      Hey guys, some of you are interested in spare tires.  Marty says the stock tires are very durable, but it does not hurt to have backups.
      Alan (132slotcar.us) is in-process of documenting what parts he has, specifically tires, wheels, and guides. They are not on his website yet. When he does I will pass on the info (part-numbers, prices).
      They are not (easy to find…) on Pendle’s site nor BRM’s site.

    • #11258
      Avatar photoBarkingSpyder
      Participant

      REVO SLOT SPARES from 132Slotcar.us
      1 x RS-213 Revo Slot complete screw set. (RS-) = $4.99
      1 x RS-107 GT2 inserts unpainted (RS-107) = $5.99
      1 x RS-109 GT2 rear wheels and 3mm grub screws (RS-108) = $7.99
      1 x RS-202 GT2 rear tires Shore 30 ( stock ) (RS-202) = $5.99
      1 x RS-208 Revo Slot brass chassis nuts & screws X 4 (RS-208) = $6.99
      1 x RS-210S Revo Slot guide screws X 2 (RS-210S) = $3.99
      1 x RS-210W Revo Slot guide 9mm deep (for Carrera & wood tracks) X 2 (RS-210W) = $3.99
      1 x SC-5010 M3 Allen wrench – tip=1.5mm (SC-5010) = $24.99

    • #11260
      Avatar photoBarkingSpyder
      Participant

      Re the NSR Rally Cars (Punto and Clio)
      The shared chassis for the NSR Punto and Clio is the new school triangle-pod version.
      As per Marty’s pic and guidance, to install a NSR1264-EVO-SW-triangular extra-hard-red-motor-mount, (e.g. for a 25k shark) the angular brace in the chassis needs to be clipped and sanded.

    • #11470
      Avatar photoRadial TA
      Participant

      Not sour grapes about the 2018 classes, but I think we should reconsider the ThunderSlot class and add the slot.it McLaren.  We could get together a couple of the McLarens already in the members hands and a couple of Thunderslots in a pre-season race with comparable skilled drivers and see if they are competitive with each other.  The cars would need to be similarly prepared and geared with very limited changes of course.

    • #11475
      Avatar photoporsche917
      Moderator

      Randy – I have no problem with it.  I think it needs to be brought up with Russell-the series manager.  I know there were some club members really looking forward to running them.  I don’t think they will be competitive with the Thunderslot cars but we will have to find out.

      Marty

    • #11484
      Avatar photoRadial TA
      Participant

      CAUTION ThunderSlot rear wheel on one side of my roadster had the correct coarse thread grub screw and the other wheel had the fine thread front suspension adjustment grub screw.  After I trued the tires the wheel grub screws both came out.  I did not get the fine screw back in its original wheel and stripped the wheel threads.  Then I stripped the other hole in that wheel.  Nice.  I have looked at both screws and the screws on the wheels I just received in the mail and I never would have guessed they would use 2 different grub screws.  The Professor lists two different spare grub screws, but I have not figured out which is the wheel and which is the suspension.

    • #11488
      Avatar photoBarkingSpyder
      Participant

      Oh God – I think Randy has been watching “The Full Monty” too many times after one too many Kalibers (NA-beer). Hey for the Christmas party I think I will get you a new micrometer or magnifier …. LOL

      • #11490
        Avatar photoRadial TA
        Participant

        Thanks, but I have those.  I also have a spare suspension grub screw now.

    • #11492
      Avatar photoBarkingSpyder
      Participant

      REVOSLOT TIRES MARBLE EASILY
      My Shore-30 OEM tires – that I trued and glued – last night started to marble ridiculously.
      They gummed up on the cleaner, but thankfully I did not see any skid-marks on the track.
      Recos: –do not use lighter fluid when truing; –true to a minimum;
      –as Marty confirmed, the tires are very tight so gluing has not yet been found to be necessary.

    • #11494
      Avatar photoALEREAL3D
      Participant

      Ok fellow racers and enthusiasts

      My revoslot pinion got loose totally loose

      Can I solder it to the motor shaft ????

      And if so please check all yours if his happens to me can happen to anyone





      During a race !!!!!

      Please advise and

      Thanks



    • #11500
      Avatar photoporsche917
      Moderator

      Thanks for letting us know about the pinion.  Something we all need to keep an eye on.  You can solder it to the motor shaft if that will work for you.  I will be keeping a close eye on mine.

      This is what happens when you put too much time into practicing.  🙂

      Marty

    • #11502
      Avatar photoBarkingSpyder
      Participant

      REVOSLOT ADVICE FROM ALAN (as of 6:30 tonite)
      — PINION SLIPPAGE
      ~~ A drop of RED LocTite (271) where the pinion and shaft tip join (Blue is too weak and solder is too risky)
      — PINION LASH
      ~~ The RVS pinions are ‘sharp’ out of the box and prevent the pinion from seating into the spur correctly – hence the slop and noise. Alan says take off the point by removing the rear axle and spur, then press a emory board against the pinion tips. Monitor with a magnifying glass – look for rounded tips. Alan insists this is a key tuning step.
      ~~ Alan confirmed that lash is Not set at the factory consistently. After rounding the pinion, set the lash with the motor pod screws.
      ~~ Use thin tough paper (bible, very thin vellum, thin blueprint paper or parchment, 2-3 rolling-papers, etc.) to gauge how tight the gears should be. Feed the paper between pinion and spur – tighten bolts, then slowly roll out the paper. Laser/copier paper and stiff parchment are too thick.
      — POD BOLTS
      ~~ These actually have 1.5mm head sockets, (Not Torx-6) but may not match the allen wrench that fits the 1.5mm head grub screws. If the allen wrench that fits your grubs does Not also fit the motor pod bolts, either (a) try other 1.5mm wrenches until you find one that fits, (b) get another wrench and carefully sand its facets until it fits the Pod screws. (c) Mark your pod wrench and wheel/spur wrench separately so you don’t strip your bolts or wrenches.

    • #11511
      Avatar photoRadial TA
      Participant

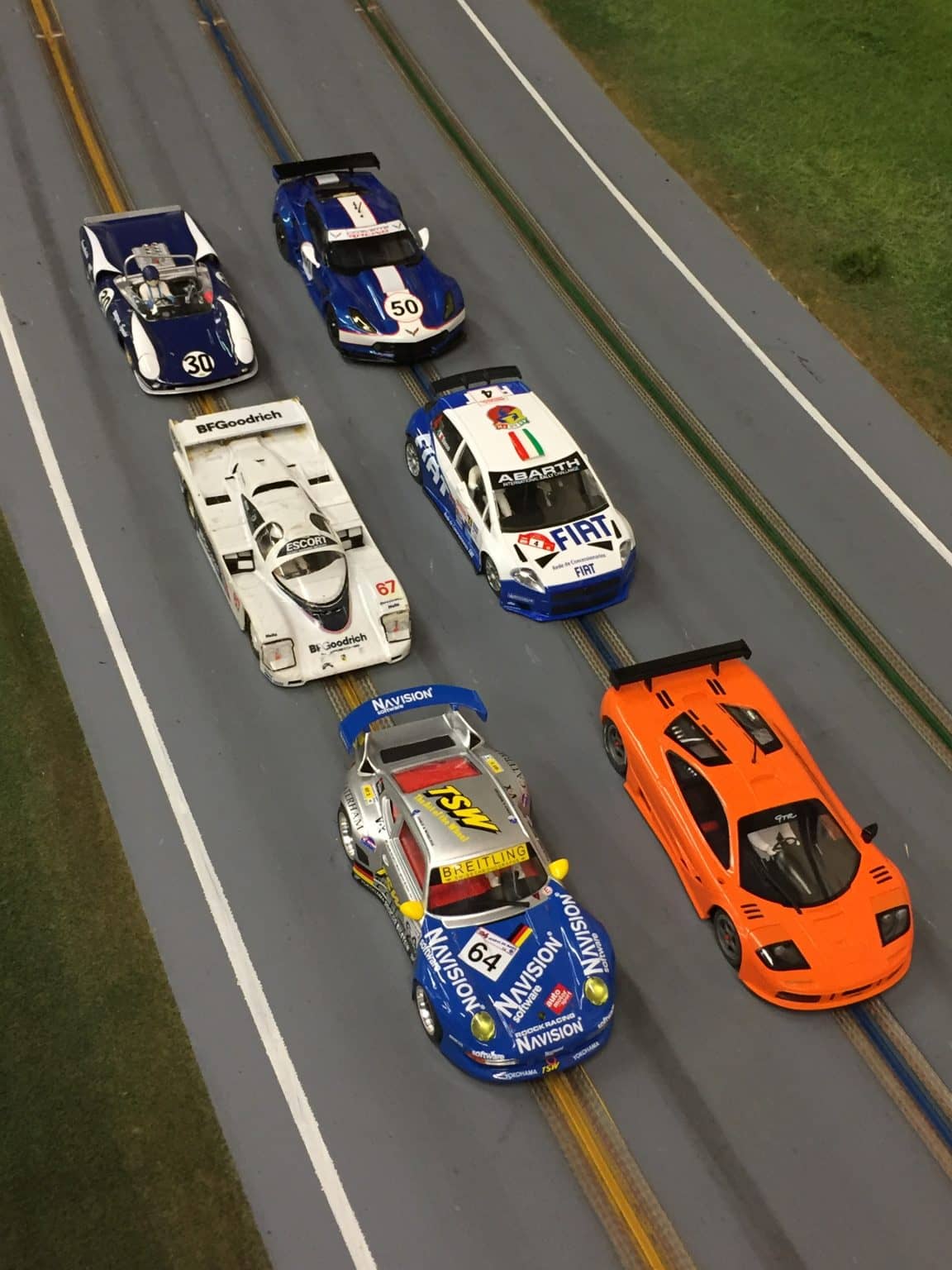

      Happy New Year 2018 Series!

      Attachments:
    • #11513
      Avatar photoporsche917
      Moderator

      Nice picture Randy!  Those are some good looking cars.  You should take the same pic at the end of the year and see what the comparison looks like.

    • #11515
      Avatar photoBarkingSpyder
      Participant

      Marty – is this legal on the Porsche?

    • #11527
      Avatar photoporsche917
      Moderator

      RevoSlot rules update – minimum front tire diameter post race – the minimum front tire diameter post race has been changed from 19.60mm to 19.40mm.  Please prepare your cars to this new standard.

      Marty

    • #11528
      Avatar photoporsche917
      Moderator

      Roy had asked that I post what the front tire diameters were post race on Saturday.  Here you go.

      Marty – 19.69mm

      Roy – 19.46mm

      Russell – 19.46mm

      Shawn – 19.48mm

      David – 19.40mm

      Jordan – 19.47mm

      Alejandro – 19.29mm

      Mark – 19.52mm

      John – 19.59mm

      Randy – 19.??mm

    • #11529
      Avatar photochapracer65
      Participant

      Preliminary Thunderslot Series Rules

      Guys, I apologize because I have been so busy that I have not had time to post rules for the Thunderslot series.  Mark has taken the time to produce a set of rules and I have discussed them with him.  I will post these preliminary rules shortly, with the goal of having final rules by Feb. 1.  That will give everyone a couple of months to get their cars ready for the series.

      My thoughts are to keep the cars as stock as possible, with two goals in mind: a level playing field and to keep the costs down.  Any changes from stock that make the cars faster, as, say, independent front axles, will mean everyone will need to make the changes to be competitive.  Rule changes from stock would primarily be due to a problem with stock parts–erratic behavior, failures, etc.–and not just to make the cars faster.  To that end I propose stock chassis, stock anglewinder motor pod, stock guide, stock front wheels, stock motor, gears, axles, etc.  The low grip front tires may be OK and either the trued original treaded rear tires or the optional slicks would be allowed.  Probably, the optional larger diameter rear wheels may be allowed, due to concern that worn tires on the original wheels may mean that the chassis bottoms out on the track.  Personally, I will try the original wheels to see if the tires will last.

      I do not see a need for tire diameter specs in this series.  With the adjustable front axle height, it is not necessary on the front, and the rears are self-limiting, due to low clearance below the chassis.  Track would be limited by not exceeding the width of the body.

      Added weight, above the chassis would be allowed.  I think installing grub screws in the provided chassis holes on the edge, to control float to the body, would be OK.

      Dibs should  be called on car liveries. For duplicate liveries, car numbers must be changed.  As I was the first to buy one of these cars, I would like to call dibs on the red Lola coupe #2.  However, if I decide to run a roadster, this car livery would be available.  If more cars become available, they would also be allowed, pending any production changes, different from the original cars.  If anyone notices any changes between any of the existing or upcoming cars, such as width, motor, wheels, weight, etc., please bring it to my attention as soon as possible.

      I am also considering running the series at 12 volts.  I did some brief running with my cars on Saturday, while running the Revo Slot car, and the cars were controllable and very quick.  I would like to hear what everyone thinks about this.

      If anyone has input as to the rules, please post to this forum.  Reasonable rules changes would be considered.

      Thanks

      Russell

    • #11536
      Avatar photoRadial TA
      Participant

      I do not like the idea of truing the front tires on stock plastic wheels and force fit axles.  My roadster seems to bounce on the un-trued fronts.  Marty tells me a very light touch on the truer will preserve the stock tire and wheel, but will it preserve the force fit on the axle?

      I have had the #30 Gurney roadster for almost 4 months.  I would change the number to 48 if I must to satisfy the “dibs” idea, but only reluctantly.  It may be too late to really call dibs.  (Letting Slot.it McLarens in the series would make more cars available;)

      11 volts seems plenty on this light car.

    • #11538
      Avatar photoRadial TA
      Participant

      I have changed the number on my blue and silver Revo Slot to 68 with red numbers.  Now it also has blue wheels in front and silver in rear to match the body colors.

    • #11539
      Avatar phototurboman93
      Participant

      I would like to call Daytona 24 hours 1969 (#8) as my car for the Thunderslot series.

    • #11540
      Avatar photoRadial TA
      Participant

      I trued the front tires of the ThunderSlot carefully and discovered three things.  The front axle is NOT knurled, so the plastic wheels side off without damage.  The plastic wheels have inserts so I could put the tire truer axle through the wheels.   I trued very carefully, test driving twice, still hopping after first true.  Then discovered that the fronts were true but soft, very unlike our usual hard zero grips.  I did not run laps after the last true, but expect real good times.  This is also the car that lost a front axle height adjustment grub and I am still waiting for those parts.

    • #11554
      Avatar photoButch
      Participant

      I also will be running the Red coupe #2 ill have to change the number.

      Jordan will be running Dana # 52

    • #11562
      Avatar photochapracer65
      Participant

      More thoughts on the Thunderslot series:

      The “white kit” comes with enough parts to build several versions of the Lola T70 Spyder:

      There are two windshields, two dashboards, two driver heads, four roll bars and three engine options.  There is a Chevy engine with vertical intakes, a cross-ram block as run by Donahue/Penske, and a Ford Indy dual overhead cam engine with bundle-of-snakes exhaust over the rear deck.  Note that the engine supplied with the Gurney #30 car is incorrect as it has Chevrolet valve covers rather than the Gurney-Weslake heads on a small block Ford engine.  Right now I am thinking that I am going to race a Spyder, set up as the #21 car with the  Ford dual overhead cam engine as raced by Parnelli Jones and Mario Andretti.  Presumably, this car, as well as others, will as some point be available from Thunderslot.

      In comparing the coupes and spyders, my red coupe weighs 63.1 grams and the #30 Gurney spyder weighs 58.5 grams.  The front/rear weight distribution between the two cars is within one percentage point.  It remains to be seen how the two cars compare on the track.  The spyder is a good bit lighter but the coupe may have a slightly higher center of gravity which may help weight transfer to the outside wheel for more cornering grip.

    • #11566
      Avatar photoBarkingSpyder
      Participant

      1. Can we move Thunderslot discussions to the thread that Randy started? ThunderSlot thread
      Otherwise this may turn into a mixed Thunderslot & Revoslot discussion – in the long run for non-club readers it may be easier for them to follow, plus for our historical reference it may be easier for us.
      2. 2nd Dibs on White Dana #52 White/Dana-LugunaSeca 1967 Peter Revson but changing number from #52 to #21 and sponsor changes (to not clash with Jordan’s #52).
      3. Specs Recommendations:
      — Keep Front plastic wheels-allow ThunderSlot upgrade Zero-Grip tires 16X9mm (TYR003FR)
      — Allow Rear ThunderSlot upgrade tires 19X10mm(TYR004R standard) and wheels 15X10mm(RMR002AL)
      — Allow above pan weights, including Slot.It 2.5g slug (SISP23)
      — Allow Slot.It DeepWood Guide (SICH07)
      — 11volts seems fine-these cars dip into the 3’s with a little tuning and some practice.
      4. Available Models for Your Reference

    • #11958
      Avatar photoBarkingSpyder
      Participant

      2018 CALENDAR CHANGES
      ALL – Please review the Google Calendar
      SHAWN please verify that the F40 vs McLaren GTR schedule is OK (6/23, 7/7, 7/21, 8/4, 8/18, 8/25) The back-to-back on #5, #6 is to accomodate the very active schedule at COTA in Sept and hence we have more than normal “dark” weekends that month. Plus b/c of the annual meeting in Oct we had to move some dates around in Oct also.
      RALLY shares Oct 27 with the Blacklight race (like we have doubled up a few times in the past with the Blacklight)
      ARY please verify that the Carerra GT schedule is OK (9/15, 9/22, 10/6, 11/17, 11/17, 12/1) #4, #5 are doubled on Nov 17 to accommodate the SVRA race Nov 3-4 and Thanksgiving Nov 24 (similar to some double headers we had in Nov’17).  An option is to move #4 to Nov 10 when we would have a long day from the Club Meeting, Carerra, Rally.

      Rally practice dates have been proposed: http://austinslotcarclub.com/forums/topic/nsr-rally-renault-clio-r3-vs-abarth-s2000/#post-11948

Viewing 54 reply threads
  • You must be logged in to reply to this topic.
